Micro MRD5000 series

Extremely compact design in a single module, DVB-T/T2, ISDB-T/TB, ATSC

The micro-transposers / gap-fillers of MRD5000 series allow for a simple and affordable extension of coverage in MFN/SFN networks. Each channel is composed of one module only and up to seven channels can be delivered within a standard 19″ 6U height frame. The reception/transmission channels are fully programmable in a very easy and fast way. Its high selectivity allows to work without problems in presence of adjacent channels.

Besides, it optionally incorporates a digital processing echo-canceller that effectively decreases the bandpass ripple resulting from an inadequate isolation between transmission and reception antenna systems. The control unit demodulates and measures the BER in all transmitted channels and also provides through the programmer a comprehensive management of the complete system, as well as remote control and supervision via free potential contacts, GSM modem, SNMP or Web Server (opt.).

More product info

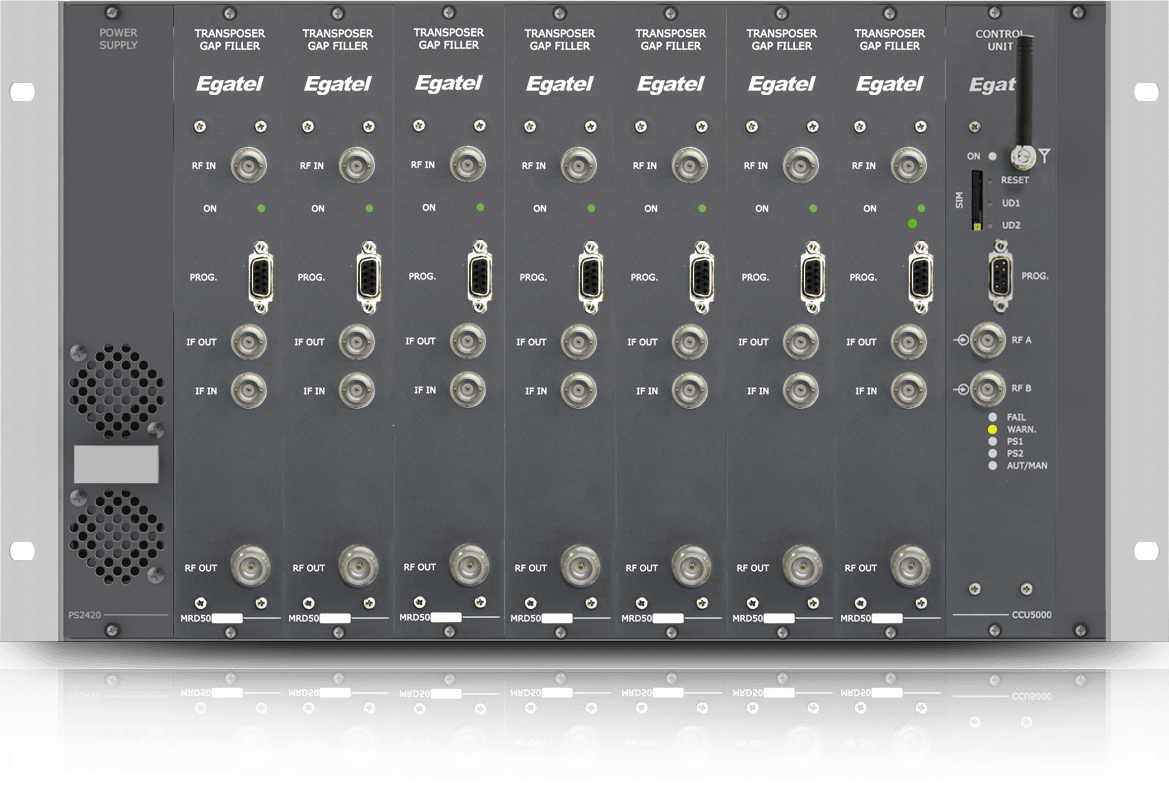

Up to seven modules in a 19″ – 6U frame.
High sensitivity and selectivity (> 40 dB to ± 4.2 MHz).
Input / output frequency continuous tuning between 470 and 862 MHz without readjustments.
MFN and SFN modes.
Non-linear precorrector with independent adjustments AM / AM and AM / PM.
Linear precorrection with amplitude – frequency response and group delay correction.
Highly stable internal frequency reference with the possibility of external synchronization.
IF input / output connectors externally accessible.
High performance echo canceller (opt.).
Antioscillation system (SAO) with automatic regulation of output power.
Integrated control unit with BER measurement in all the transmitted channels.
PC Graphical User Interface.
Only one 24 VDC reference supply voltage for all modules. Redundance (opt.).
Configurable via easy – to – use push – buttons / display.
N+1 redundancy (opt.). (MRD5000N series).
Remote control and supervision via potential free contacts or GSM / GPRS modem, SNMP.

Model	MRD5010	MRD5050
Output power (before filter): DVB-T/H/T2, ISDB-T/TB	0.3, 1.25, 2.5 Wrms	6 Wrms
Output power (before filter): ATSC	0.45, 2, 3.75 Wrms	9 Wrms
RF output connector	N (F) 50 ohm	N (F) 50 ohm
