TUWH1000 series

  • Home
  • TUWH1000 series

Wideband High Efficiency Technology, Compact design.

The New High Efficiency Ultracompact (1U) TUWH1000 Transmitters family represents a step ahead in the Wideband Doherty solutions, making installation, operation and maintance easier to broadcasters, and offering an unbeatable cost – performance (CAPEX / OPEX) ratio.

The TUWH1000 Series expands the capabilities of Wideband High Efficiency Egatel Transmitters covering any requirement and broadcast network topology, providing an ideal solution for extending digital TV networks.

It can operate as a multistandard transmitter or retransmitter (DVB-T/H/T2, ATSC, ISDB-Tb) with an output power up to 125 Wrms in only 1U, managing several input interfaces depending on the mode of operation: ASI or TSoIP (transmitter) plus an RF input (retransmitter).

It features a top-class Digital Adaptive Precorrection system to automatically cancel the amplifier distorsion and a powerful WEB GUI to provide an easy and friendly way for local and remote control.

More product info

  • Key features
  • Technical Data
  • Datasheets
  • Extremely compact design: up to 125 Wrms in only 1U.

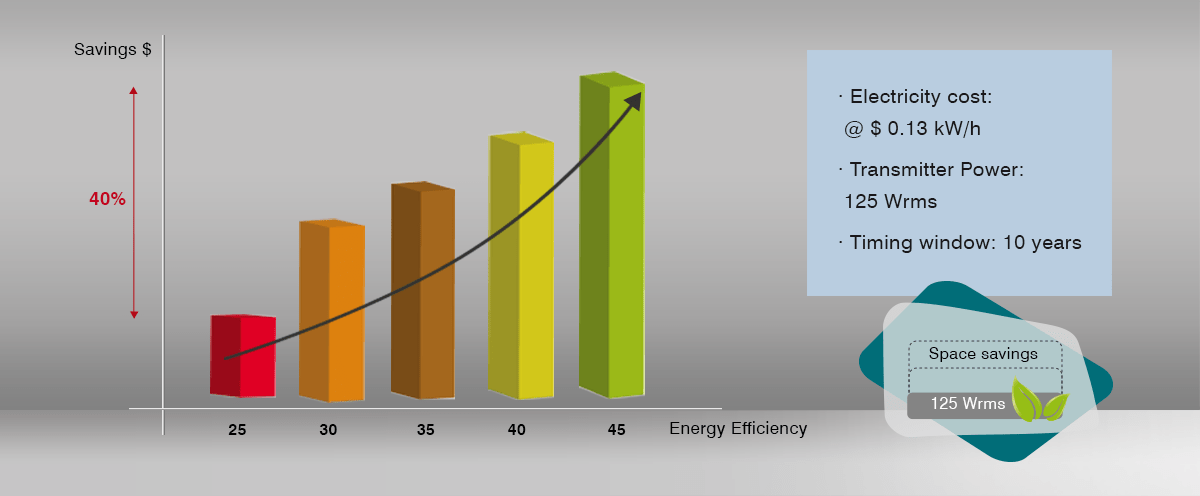

  • High Energy Efficiency: Wideband Doherty Technology.
  • Multistandard: DVB-T/H/T2, ATSC, ISDB-Tb.
  • Digital Adaptive Precorrection.
  • Friendly Web GUI providing ease of operation.
  • TSoIP inputs to manage ASI streams through IP networks.
  • Reception option that enables retransmitter operation.
  • Optional QoS measurement.
  • Optional on-board GPS.
  • N+1 redundancy ready.
  • Remote control via Dry contacts, SNMP, Web GUI.
  • Remote software update.
Model TUWH1050 TUWH1200 TUWH1101
Output power (before filter): DVB-T/H/T2, ISDB-T/TB 5 (*) Wrms 25 (*) Wrms 120 Wrms
Output power (before filter): ATSC 5 (*) Wrms 25 (*) Wrms 125 Wrms
RF output connector N (F) 50 ohm N (F) 50 ohm N (F) 50 ohm
(*) no Doherty Technology
  • Datasheet
  • Brochure
